Addressable LED Panel

$20.00

This is a 256 HD LED Panel for use on your LED Matrix. This is a high quality LED Panel that not only offers an extremely nice presentation of your LED lights, but also comes with an extremely simple mounting system and pluggable addressable wires to make installation super simple! No soldering of any wires — it all just plugs right in and you are ready to go!

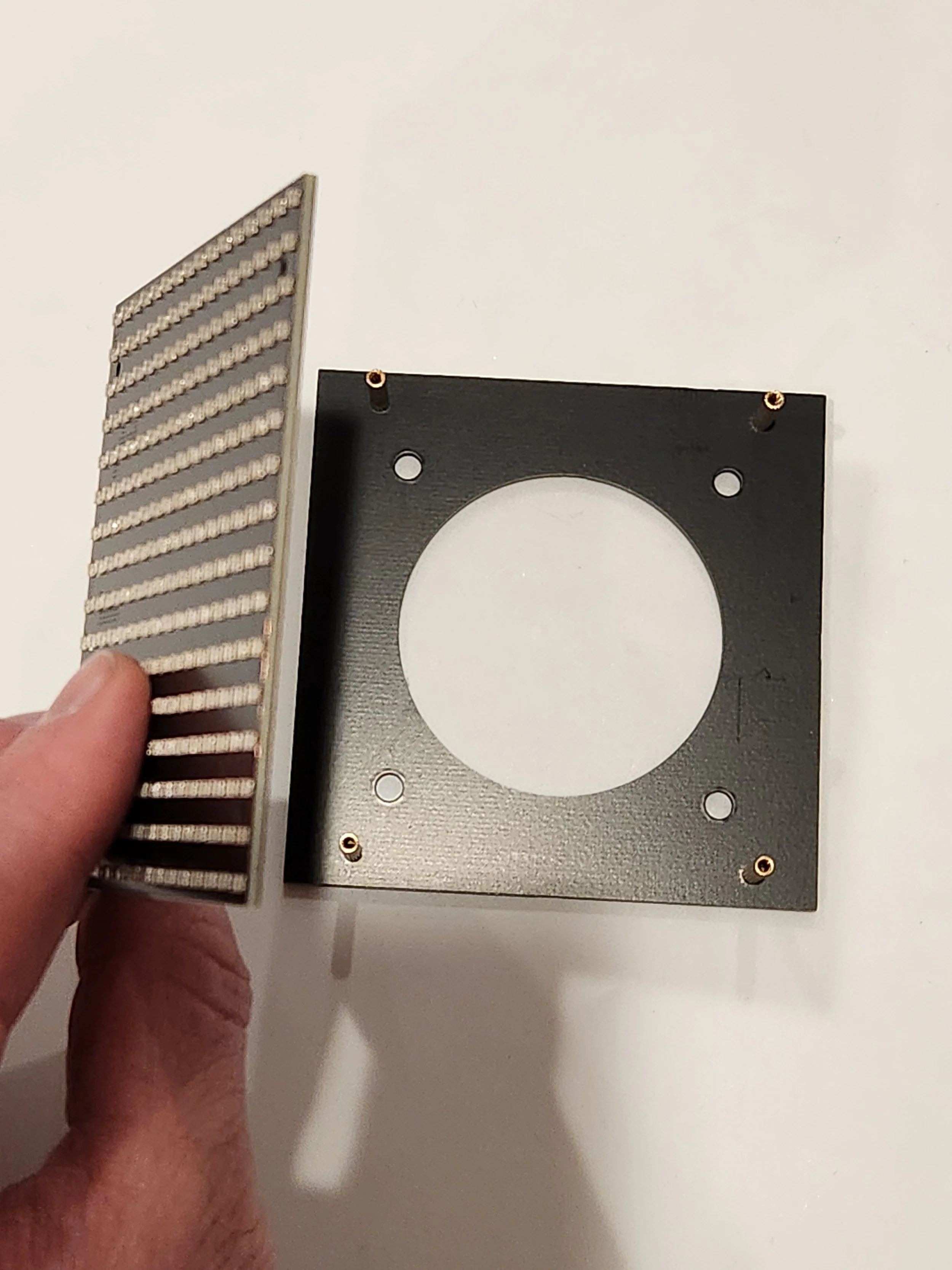

Mounting it is really simple, you can screw the back plate onto the cabinet using the supplied screws, and the LED matrix mounts onto the top of the plate for a perfect fit with perfect alignment across your separate panels.

Max current is 3 amps, but they are unbearably bright at that setting. At 50% brightness they will use 1 amp and I run mine at only 10% brightness, so you don’t need a large power supply to run these boards.

Boards are 3-1/8” square and come with mounting boards, hardware and wire to connect to your LED controller. With the mounting boards in place, they are 18mm deep. The connectors on the back of the boards are XH2.54-WS-3P connectors

Quantity:
Add To Cart

This is a 256 HD LED Panel for use on your LED Matrix. This is a high quality LED Panel that not only offers an extremely nice presentation of your LED lights, but also comes with an extremely simple mounting system and pluggable addressable wires to make installation super simple! No soldering of any wires — it all just plugs right in and you are ready to go!

Mounting it is really simple, you can screw the back plate onto the cabinet using the supplied screws, and the LED matrix mounts onto the top of the plate for a perfect fit with perfect alignment across your separate panels.

Max current is 3 amps, but they are unbearably bright at that setting. At 50% brightness they will use 1 amp and I run mine at only 10% brightness, so you don’t need a large power supply to run these boards.

Boards are 3-1/8” square and come with mounting boards, hardware and wire to connect to your LED controller. With the mounting boards in place, they are 18mm deep. The connectors on the back of the boards are XH2.54-WS-3P connectors

This is a 256 HD LED Panel for use on your LED Matrix. This is a high quality LED Panel that not only offers an extremely nice presentation of your LED lights, but also comes with an extremely simple mounting system and pluggable addressable wires to make installation super simple! No soldering of any wires — it all just plugs right in and you are ready to go!

Mounting it is really simple, you can screw the back plate onto the cabinet using the supplied screws, and the LED matrix mounts onto the top of the plate for a perfect fit with perfect alignment across your separate panels.

Max current is 3 amps, but they are unbearably bright at that setting. At 50% brightness they will use 1 amp and I run mine at only 10% brightness, so you don’t need a large power supply to run these boards.

Boards are 3-1/8” square and come with mounting boards, hardware and wire to connect to your LED controller. With the mounting boards in place, they are 18mm deep. The connectors on the back of the boards are XH2.54-WS-3P connectors
