Virtual Pinball Builders Kit

from $409.00

***Shaker Motors are currently on hold. Any order placed after 5/19/26 containing a shaker motor will have the cost of the shaker motor refunded and the kit will be shipped without the shaker motor. Those wishing to add a shaker motor to their kit can purchase them here when stock has replenished. ***

Now you can have a full virtual pinball experience, just like you would get if you paid thousands of dollars, but for a fraction of the cost and almost as easy to setup!

This is a kit that includes all of my gear in a nice all-in-one package, fully assembled and ready to plug and play. All wires, screws, ribbon cables and everything you need to hook it up are included.

All kits come with my main board that will give you analog nudge, inputs for buttons and plunger, and outputs to run all your toys.

Solenoids and/or SSF System? Yes! This kit allows the option to get both Solenoids and the SSF together! If purchased in this way, you get a big discount on the SSF components, so if you are planning on doing SSF in the future, it’s worth considering getting it with the kit. All components from the SSF kit listing available separately will be included in this option!

The kits come in four sizes:

  • VR Cabinet Kit - This kit comes with a PinOne Main Board, PSU, 4 solenoids with Life Extenders and/or the 2.1 (3 speaker) SSF system, Plunger, and the Button Board with the Flipper Button Boards and 12 buttons (5 RGB and 7 Single Color LED).

  • Small Cabinet Kit - Comes with a PinOne Main Board, PSU, 8 solenoids with Life Extenders and/or the 2.1 (3 speaker) SSF system, Plunger, the Button Board with the Flipper Button Boards and 12 buttons (5 RGB and 7 Single Color LED), and Service Board.

  • Medium to Large Cabinet Kit - Comes with a PinOne Main Board, PSU, 10 solenoids with Life Extenders and/or the 4.1 (5 speaker) SSF system, Plunger, and the Button Board with the Flipper Button Boards and 12 buttons (5 RGB and 7 Single Color LED), Service Board, Shaker Motor.

  • Extreme Builders Kit - Comes with everything in the Medium/Large Cabinet Kit, plus an additional expansion board and the LED light bar.

*See below for the complete list of parts for each kit

PinOne configuration instructions can be found here

Connecting the Builder’s kit instructions are all found here

pinballcabinet.com has designed a VR cabinet that works perfectly with the VR Cabinet Kit, so definitely worth checking it out if you are looking to build your own cabinet: https://pinballcabinet.com/products/pinsim-virtual-reality-pinball-cabinet-flat-pack

Some pictures feature the older V3 solenoids, but all kits come with the new Blue V4 solenoids.

***SHAKER MOTORS currently out of stock, see note above***

Plunger Color:
Control Board:
Solenoids and SSF:
Kit:

***Shaker Motors are currently on hold. Any order placed after 5/19/26 containing a shaker motor will have the cost of the shaker motor refunded and the kit will be shipped without the shaker motor. Those wishing to add a shaker motor to their kit can purchase them here when stock has replenished. ***

Now you can have a full virtual pinball experience, just like you would get if you paid thousands of dollars, but for a fraction of the cost and almost as easy to setup!

This is a kit that includes all of my gear in a nice all-in-one package, fully assembled and ready to plug and play. All wires, screws, ribbon cables and everything you need to hook it up are included.

All kits come with my main board that will give you analog nudge, inputs for buttons and plunger, and outputs to run all your toys.

Solenoids and/or SSF System? Yes! This kit allows the option to get both Solenoids and the SSF together! If purchased in this way, you get a big discount on the SSF components, so if you are planning on doing SSF in the future, it’s worth considering getting it with the kit. All components from the SSF kit listing available separately will be included in this option!

The kits come in four sizes:

  • VR Cabinet Kit - This kit comes with a PinOne Main Board, PSU, 4 solenoids with Life Extenders and/or the 2.1 (3 speaker) SSF system, Plunger, and the Button Board with the Flipper Button Boards and 12 buttons (5 RGB and 7 Single Color LED).

  • Small Cabinet Kit - Comes with a PinOne Main Board, PSU, 8 solenoids with Life Extenders and/or the 2.1 (3 speaker) SSF system, Plunger, the Button Board with the Flipper Button Boards and 12 buttons (5 RGB and 7 Single Color LED), and Service Board.

  • Medium to Large Cabinet Kit - Comes with a PinOne Main Board, PSU, 10 solenoids with Life Extenders and/or the 4.1 (5 speaker) SSF system, Plunger, and the Button Board with the Flipper Button Boards and 12 buttons (5 RGB and 7 Single Color LED), Service Board, Shaker Motor.

  • Extreme Builders Kit - Comes with everything in the Medium/Large Cabinet Kit, plus an additional expansion board and the LED light bar.

*See below for the complete list of parts for each kit

PinOne configuration instructions can be found here

Connecting the Builder’s kit instructions are all found here

pinballcabinet.com has designed a VR cabinet that works perfectly with the VR Cabinet Kit, so definitely worth checking it out if you are looking to build your own cabinet: https://pinballcabinet.com/products/pinsim-virtual-reality-pinball-cabinet-flat-pack

Some pictures feature the older V3 solenoids, but all kits come with the new Blue V4 solenoids.

***SHAKER MOTORS currently out of stock, see note above***

12v to 24v knocker circuit conversion kit 12v to 24v knocker circuit conversion kit 12v to 24v knocker circuit conversion kit 12v to 24v knocker circuit conversion kit

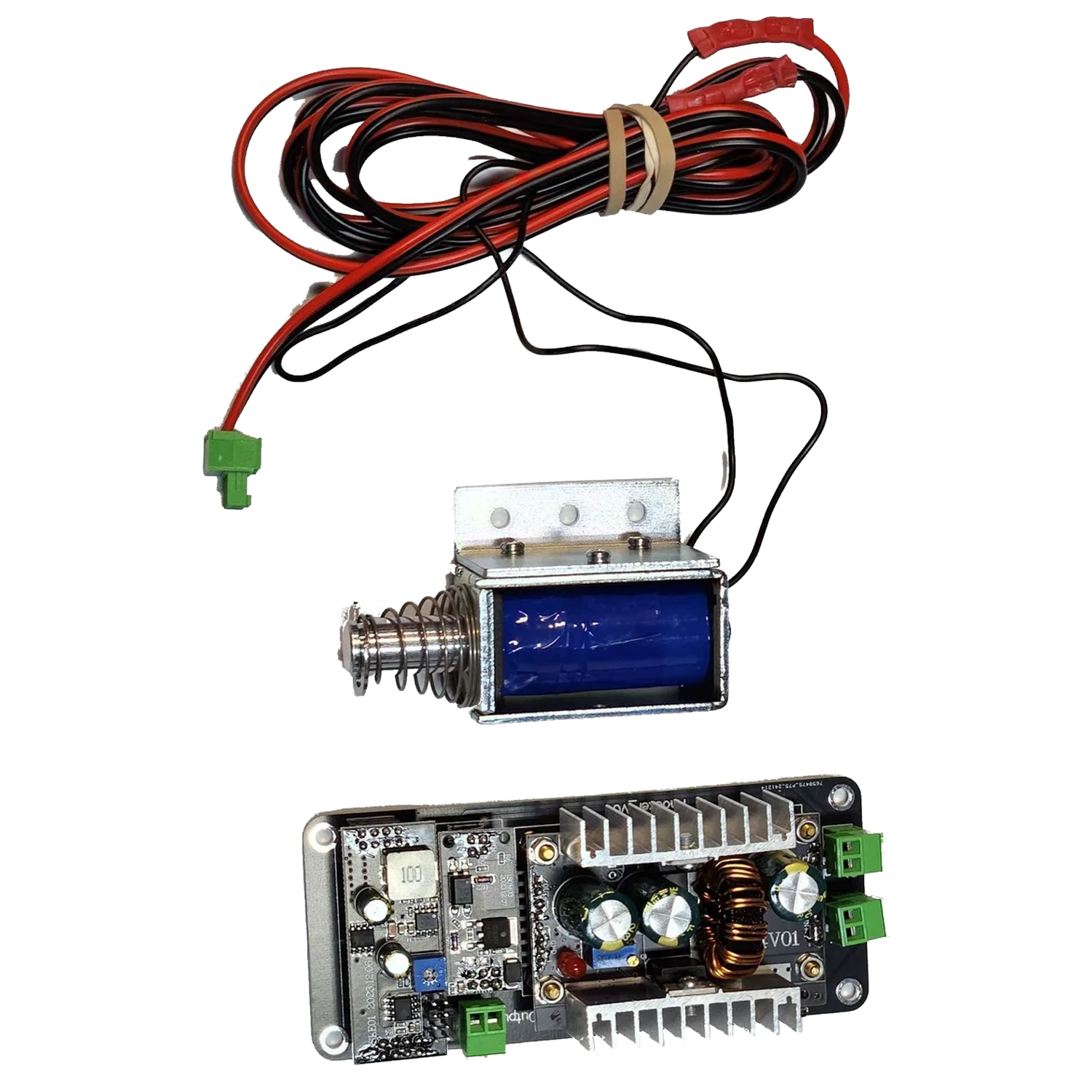

12v to 24v knocker circuit conversion kit
from $25.00
Options:

Parts list for the kits

VR Kit

  • PinOne Main Board (12 Output Control Board with 11x Mosfet and 1x Motor Control Board)
  • 12v 10A PSU (with Power Cord)
  • 13.5 inch Large Mounting Board (PinOne Main Board and PSU come pre-assembled and mounted to this board for easy installation)
  • 4x Solenoids
  • 2x 2 Position Solenoid Life Extenders
  • 2x 13 inch Mounting Board (Solenoids and Solenoid Life Extender Boards come pre-assembled and mounted on these for easy installation)
  • 2x 3 Terminal Wire (for wiring Solenoid Life Extender Boards to the Main Board)
  • Button Board
  • 2x Flipper Button Boards
  • 16 Pin Cable
  • 20 Pin Cable
  • 2x 12 Pin Cable (Pin Cables are for Button Board Connections to Main Board and Flipper Button Expansion Boards)
  • 5x True Leaf Button (All buttons include necessary connection wires and Button Rings)
  • 2x Red LED Button
  • 2x Blue LED Button
  • 2x Green LED Button
  • 1x White LED Button
  • Williams Style Plunger
  • Plunger Potentiometer Hardware (Potentiometer Slider, Plunger Mount, Potentiometer Slider Connection Bracket, 3 Terminal Wire, 5x Screws)
  • *Note Plunger may be pre-assembled
  • 8x Board Mounting Screws with Spacers
  • USB-C to USB-A Connection Wire

Small Kit

  • PinOne Main Board (12 Output Control Board with 11x Mosfet and 1x Motor Control Board)
  • 12v 10A PSU (with Power Cord)
  • 13.5 inch Large Mounting Board (PinOne Main Board and PSU come pre-assembled and mounted to this board for easy installation)
  • 8x Solenoids
  • 4x 2 Position Solenoid Life Extenders
  • 4x 3 Terminal Wire (for wiring Solenoid Life Extender Boards to the Main Board)
  • 4x 13 inch Mounting Board (Solenoids and Solenoid Life Extender Boards come pre-assembled and mounted on these for easy installation)
  • Button Board
  • 2x Flipper Button Boards
  • 16 Pin Cable
  • 20 Pin Cable
  • 2x 12 Pin Cable (Pin Cables are for Button Board Connections to Main Board and Flipper Button Expansion Boards)
  • 5x True Leaf Button (All buttons include necessary connection wires and Button Rings)
  • 2x Red LED Button
  • 2x Blue LED Button
  • 2x Green LED Button
  • 1x White LED Button
  • Williams Style Plunger
  • Plunger Potentiometer Hardware (Potentiometer Slider, Plunger Mount, Potentiometer Slider Connection Bracket, 3 Terminal Wire, 5x Screws)
  • *Note Plunger may be pre-assembled
  • Service Board (with Mounting Hardware/Screws)
  • 8x Board Mounting Screws with Spacers
  • USB-C to USB-A Connection Wire

Medium/Large Kit

  • PinOne Main Board (12 Output Control Board with 11x Mosfet and 1x Motor Control Board)
  • 12v 10A PSU (with Power Cord)
  • 13.5 inch Large Mounting Board (PinOne Main Board and PSU come pre-assembled and mounted to this board for easy installation)
  • 10x Solenoids
  • 2x 2 Position Solenoid Life Extenders
  • 2x 3 Position Solenoid Life Extenders
  • 2x 3 Terminal Wire (for wiring Solenoid Life Extender Boards to the Main Board)
  • 2x 4 Terminal Wire (for wiring Solenoid Life Extender Boards to the Main Board)
  • 2x 13 inch Mounting Board (Solenoids and Solenoid Life Extender Boards come pre-assembled and mounted on these for easy installation)
  • 2x 19.5 inch Mounting Board (Solenoids and Solenoid Life Extender Boards come pre-assembled and mounted on these for easy installation)
  • Button Board
  • 2x Flipper Button Boards
  • 16 Pin Cable
  • 20 Pin Cable
  • 2x 12 Pin Cable (Pin Cables are for Button Board Connections to Main Board and Flipper Button Expansion Boards)
  • 5x True Leaf Button (All buttons include necessary connection wires and Button Rings)
  • 2x Red LED Button
  • 2x Blue LED Button
  • 2x Green LED Button
  • 1x White LED Button
  • Williams Style Plunger
  • Plunger Potentiometer Hardware (Potentiometer Slider, Plunger Mount, Potentiometer Slider Connection Bracket, 3 Terminal Wire, 5x Screws)
  • *Note Plunger may be pre-assembled
  • Service Board (with Mounting Hardware/Screws)

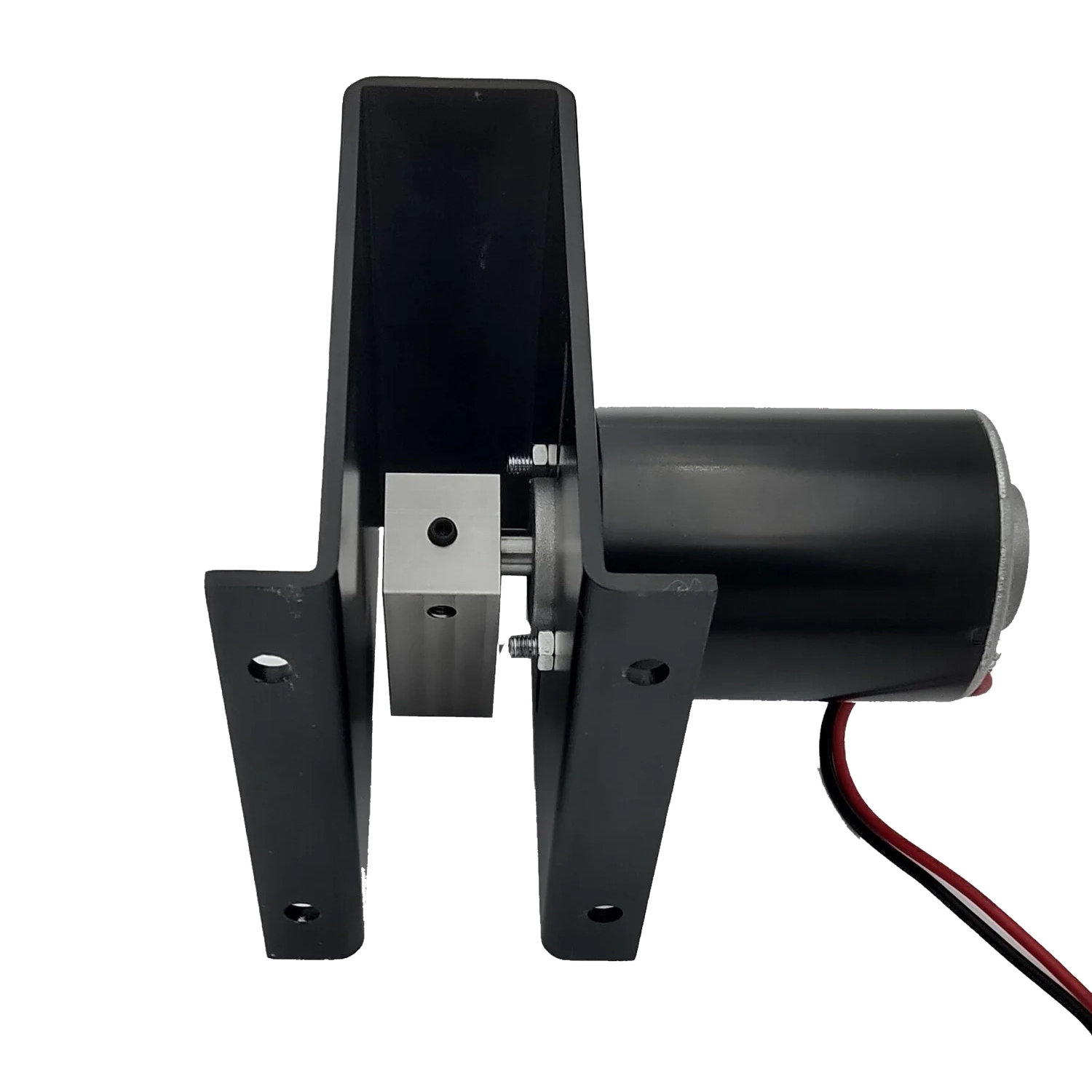

  • Shaker Motor
  • 8x Board Mounting Screws with Spacers
  • 4x Shaker Motor Screws
  • USB-C to USB-A Connection Wire

Extreme Kit

  • PinOne Main Board (12 Output Control Board with 11x Mosfet and 1x Motor Control Board)
  • 12v 10A PSU (with Power Cord)
  • 13.5 inch Large Mounting Board (PinOne Main Board and PSU come pre-assembled and mounted to this board for easy installation)
  • 10x Solenoids
  • 2x 2 Position Solenoid Life Extenders
  • 2x 3 Position Solenoid Life Extenders
  • 2x 3 Terminal Wire (for wiring Solenoid Life Extender Boards to the Main Board)
  • 2x 4 Terminal Wire (for wiring Solenoid Life Extender Boards to the Main Board)
  • 2x 13 inch Mounting Board (Solenoids and Solenoid Life Extender Boards come pre-assembled and mounted on these for easy installation)
  • 2x 19.5 inch Mounting Board (Solenoids and Solenoid Life Extender Boards come pre-assembled and mounted on these for easy installation)
  • Button Board
  • 2x Flipper Button Boards
  • 16 Pin Cable
  • 20 Pin Cable
  • 2x 12 Pin Cable (Pin Cables are for Button Board Connections to Main Board and Flipper Button Expansion Boards)
  • 5x True Leaf Button (All buttons include necessary connection wires and Button Rings)
  • 2x Red LED Button
  • 2x Blue LED Button
  • 2x Green LED Button
  • 1x White LED Button
  • Williams Style Plunger
  • Plunger Potentiometer Hardware (Potentiometer Slider, Plunger Mount, Potentiometer Slider Connection Bracket, 3 Terminal Wire, 5x Screws)
  • *Note Plunger may be pre-assembled
  • Service Board (with Mounting Hardware/Screws)
  • Shaker Motor
  • PinOne Expansion Board (16 Channel Low Power Expansion Board)
  • Light Bar
  • 4 Pin Cable
  • 20 Pin Cable (2 Meter)
  • 4 Light Bar Screws/Spacers
  • 12x Board Mounting Screws with Spacers
  • 4x Shaker Motor Screws
  • USB-C to USB-A Connection Wire

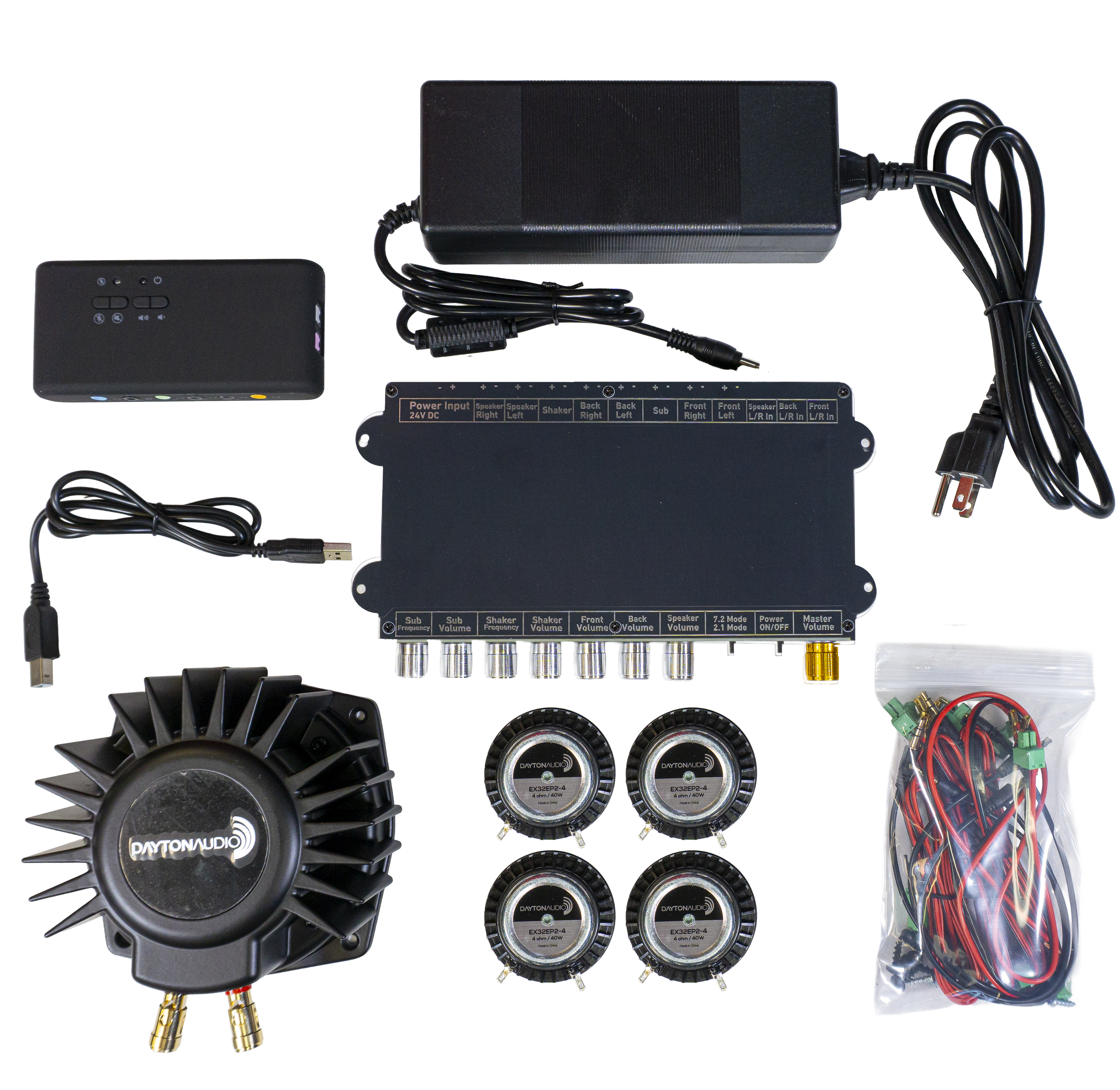

SSF

  • 2.1 SSF System Includes: Amplifier, PSU, 5.1 Channel Sound Card, 1x Bass Shaker Speaker, 2x Exciter Speaker, 2x 2 Meter Speaker Wire, 1x Bass Shaker Wire, 3x 3.5mm Connection Wire, x4 Speaker Mounting Screw, x8 Mounting Screw, 5x Green Terminal Connector, 1x Big Green Terminal Connector.
  • 4.1 SSF System Includes: Amplifier, PSU, 7.1 Channel Sound Card, 1x Bass Shaker Speaker, 4x Exciter Speaker, 2x 2 Meter Speaker Wire, 2x 1.5 Meter Speaker Wire, 1x Bass Shaker Wire, 3x 3.5mm Connection Wire, x8 Speaker Mounting Screw, x8 Mounting Screw, 3x Green Terminal Connector, 1x Big Green terminal Connector.

*Note that due to limited availability of KL25Z boards and the PinOne just being a much better experience for my users, I have stopped producing builders kits using the KL25Z boards at this time. If you have any questions or have a specific need for the KL25Z builders kit, please reach out to me via the contact page
